vidaXL Self-Centering Lathe Chuck Steel K11 80
Product description

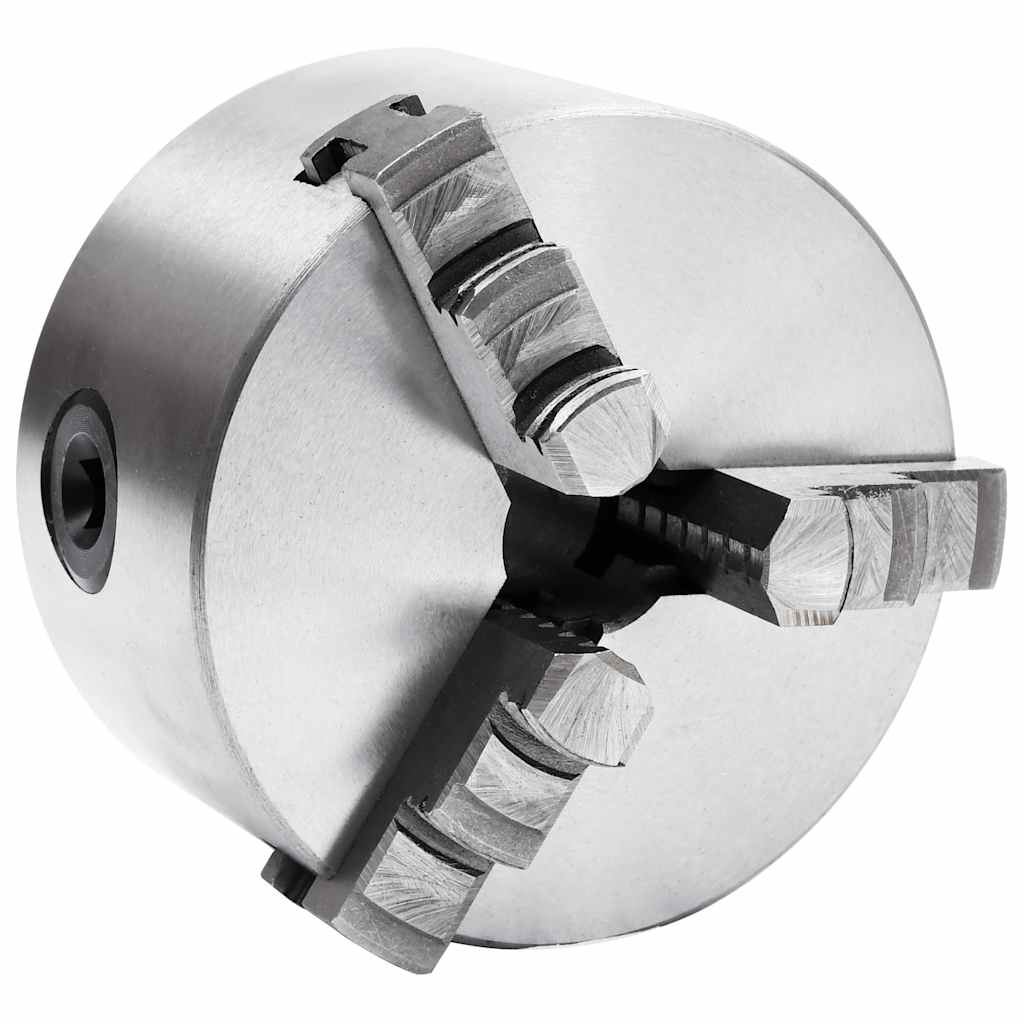

This self-centring 3 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material. It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 3 jaw design, self-centring, compact size and easy to use.
- Colour: Silver and black
- Material: HT300 steel
- Run out: 0.08
Specifications by option
| Size | Model | Outside diameter | Number of jaw | Passage | Cylindrical inner passage | Clamping range | Total height | Maximum speed | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 80 mm | 3 jaw | 80 mm | 3 | 16 mm | 56 mm | 2 - 22 mm | 50 mm | 4000 R/min | 1.7 kg |

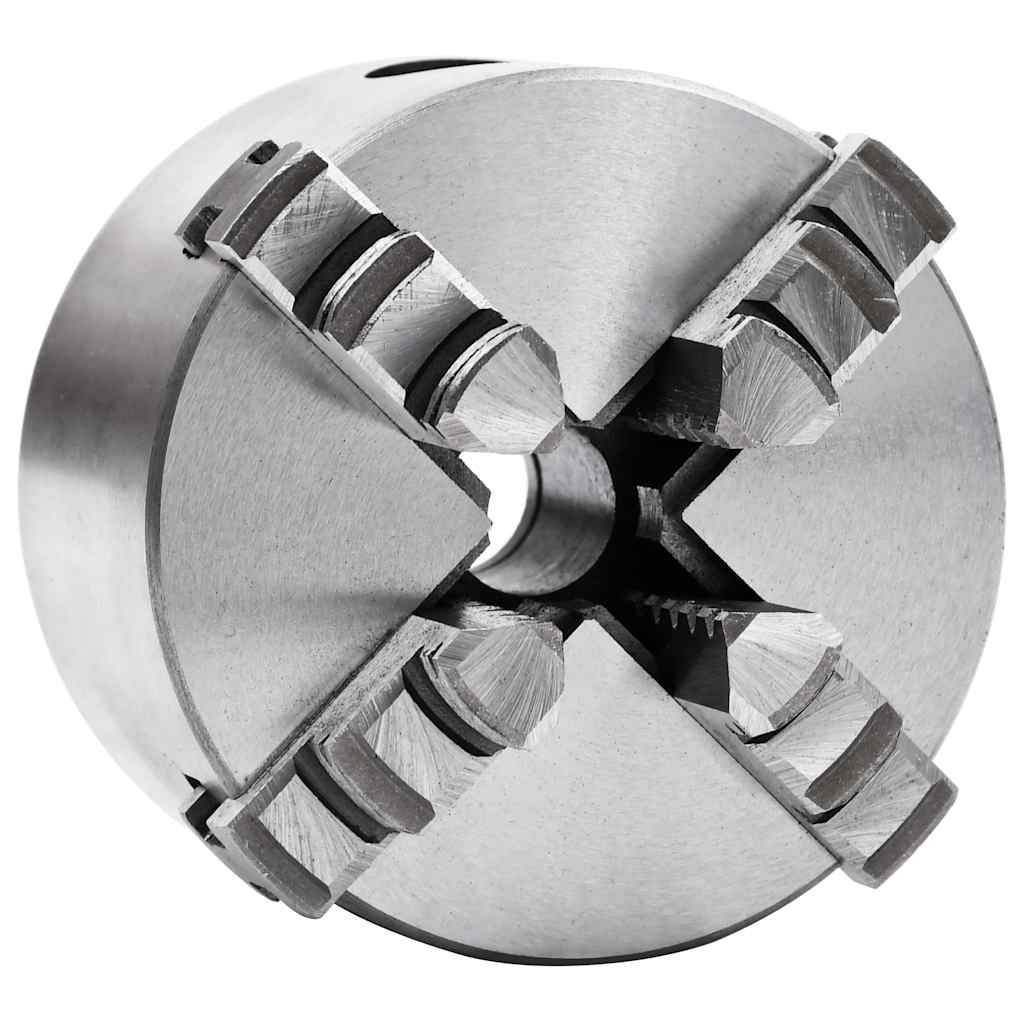

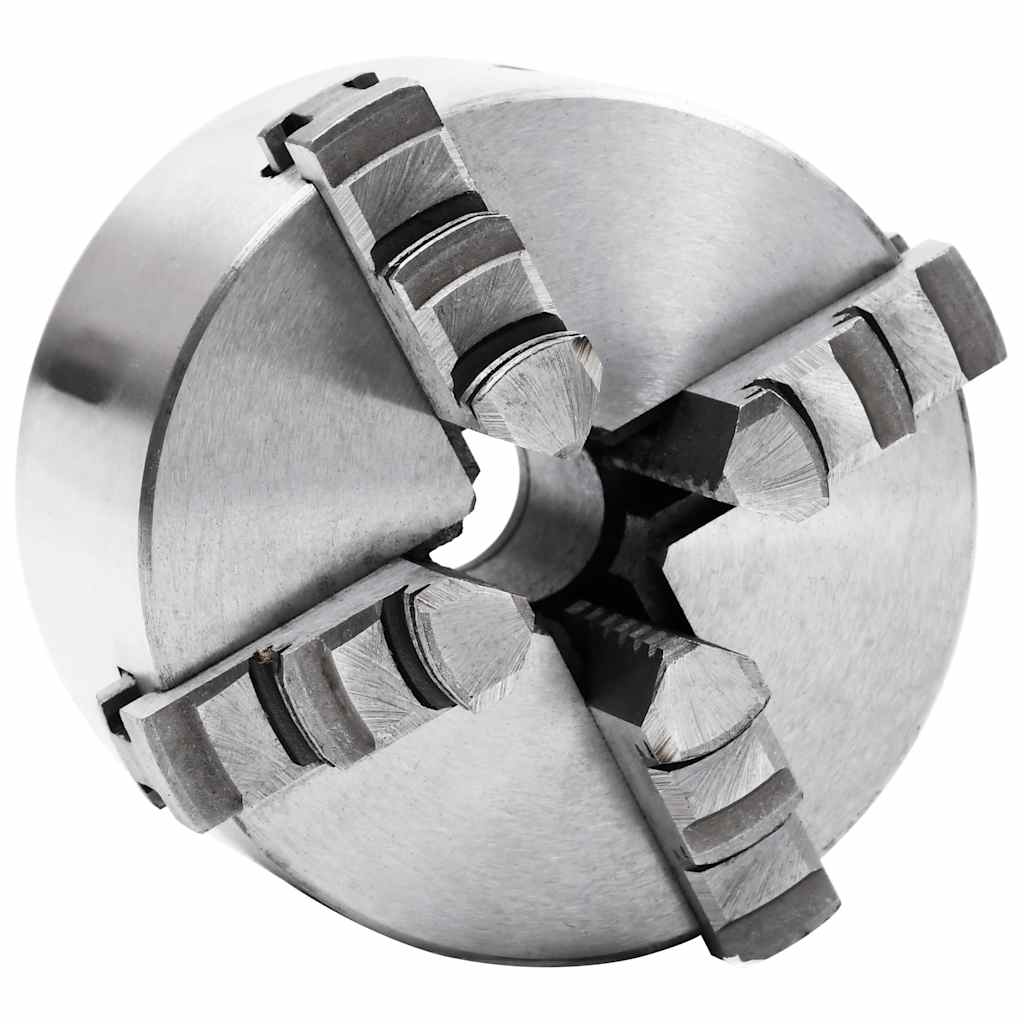

| 80 mm | 4 jaw | 80 mm | 4 | 16 mm | 55 mm | 2 - 22 mm | 50 mm | 4000 R/min | 1.8 kg |
| 100 mm | 3 jaw | 100 mm | 3 | 22 mm | 70 mm | 2 - 30 mm | 55 mm | 3500 R/min | 3 kg |
| 100 mm | 4 jaw | 100 mm | 4 | 22 mm | 72 mm | 2 - 30 mm | 55 mm | 3500 R/min | 3.2 kg |
| 125 mm | 3 jaw | 125 mm | 3 | 30 mm | 95 mm | 2.5 - 40 mm | 58 mm | 3000 R/min | 4.7 kg |

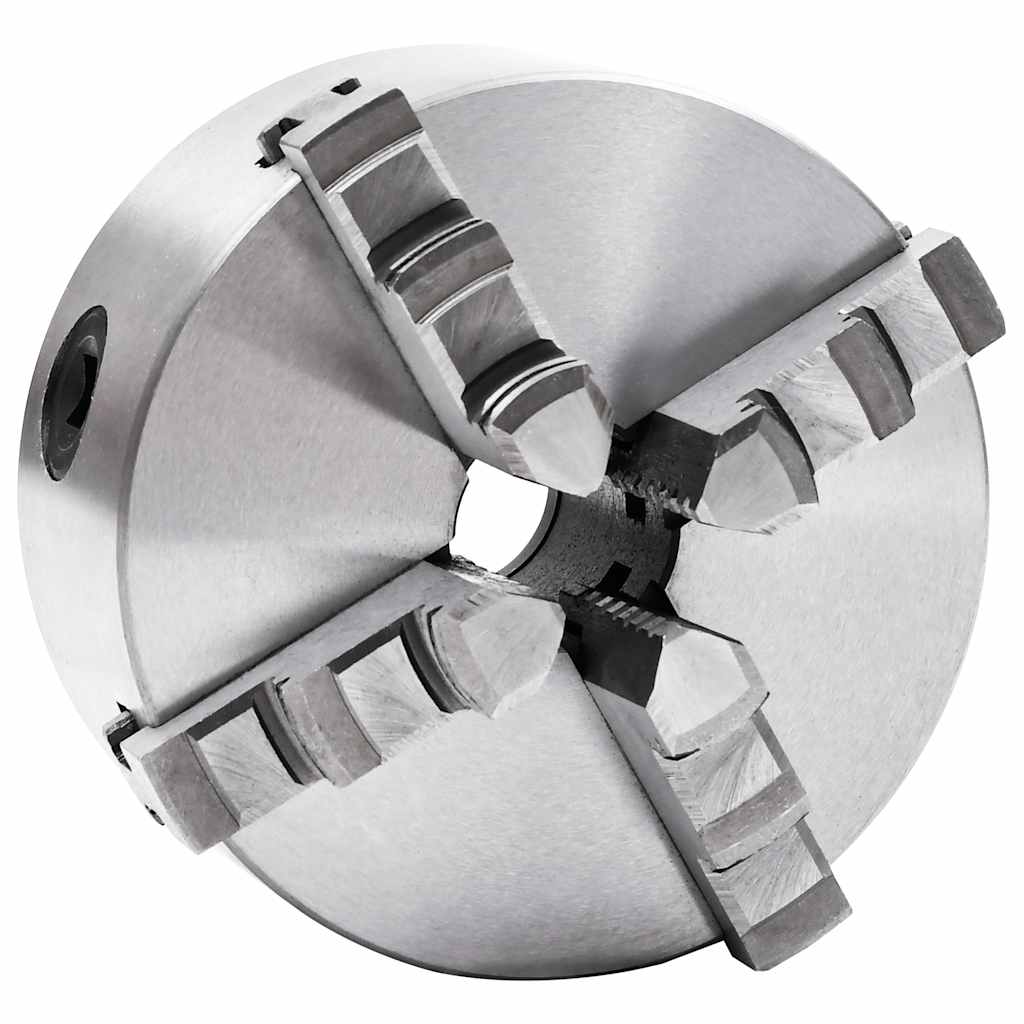

| 125 mm | 4 jaw | 125 mm | 4 | 30 mm | 95 mm | 2.5 - 40 mm | 58 mm | 3000 R/min | 5.3 kg |

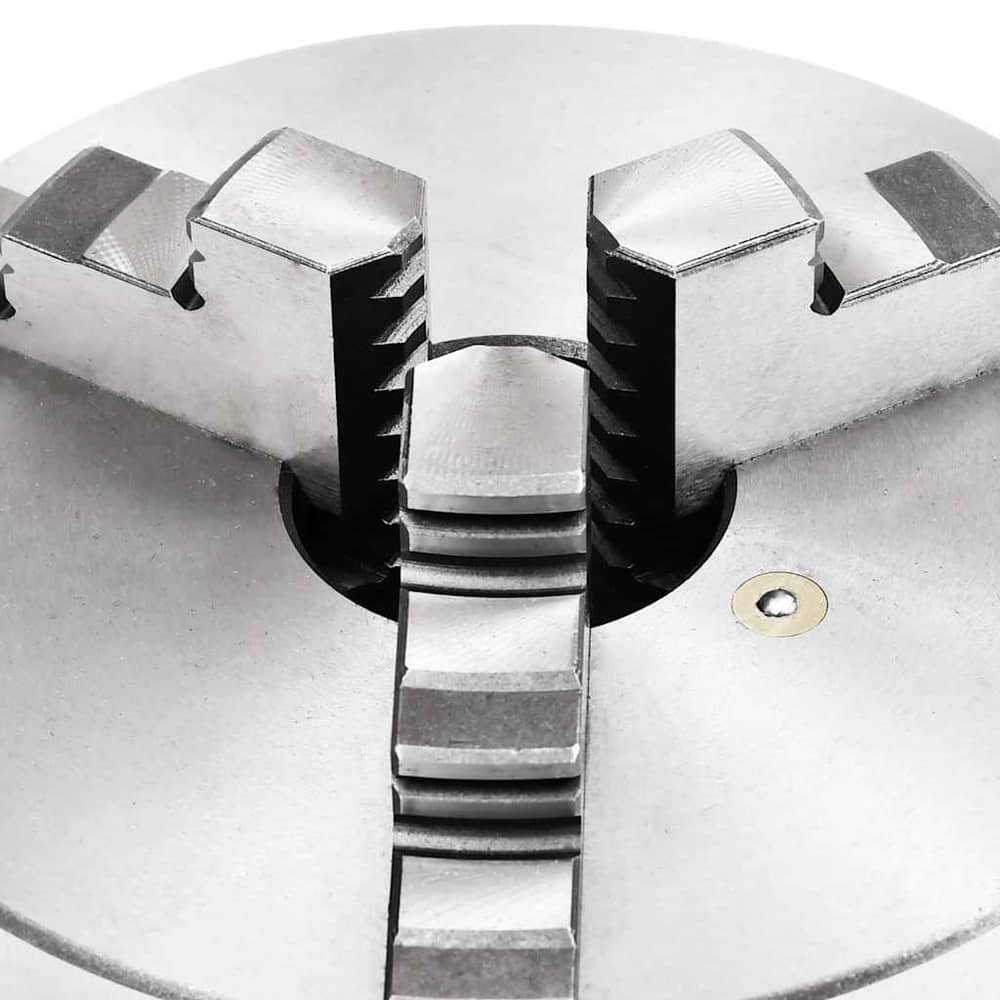

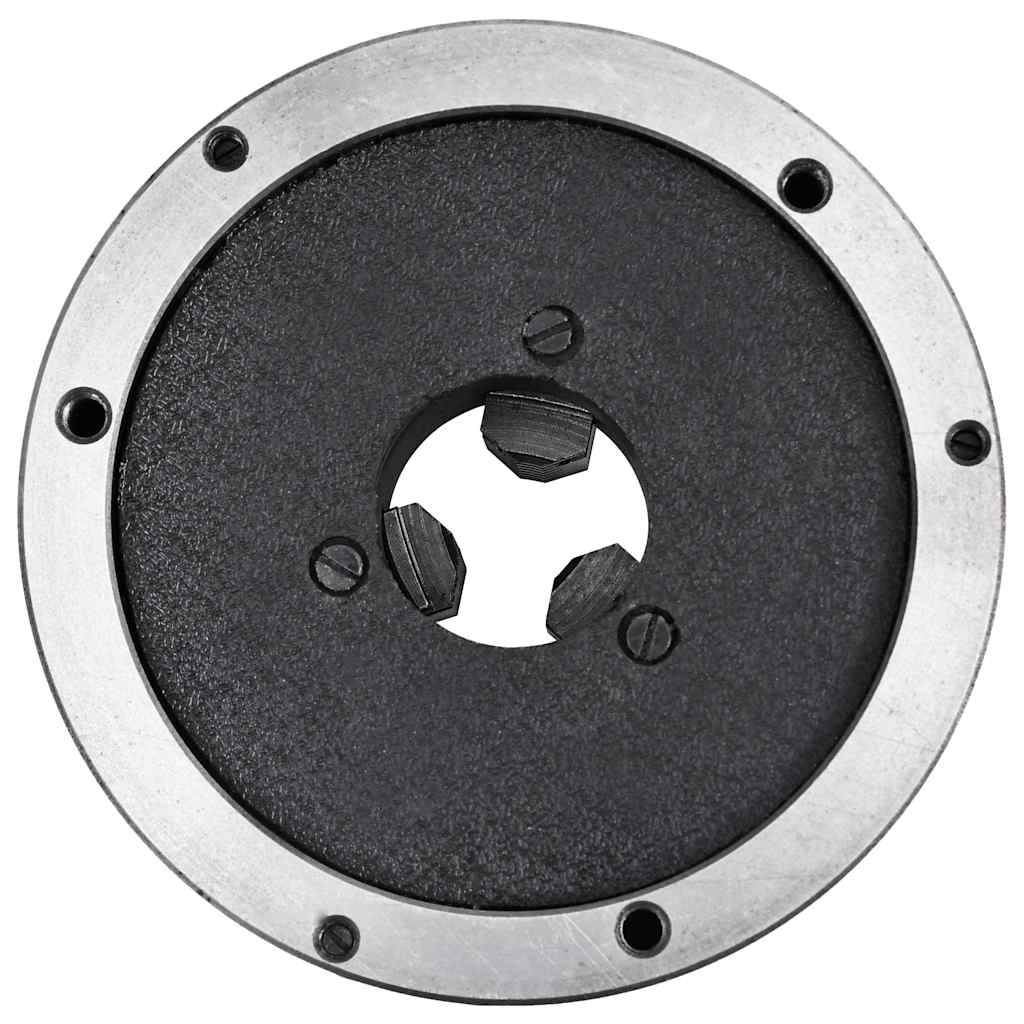

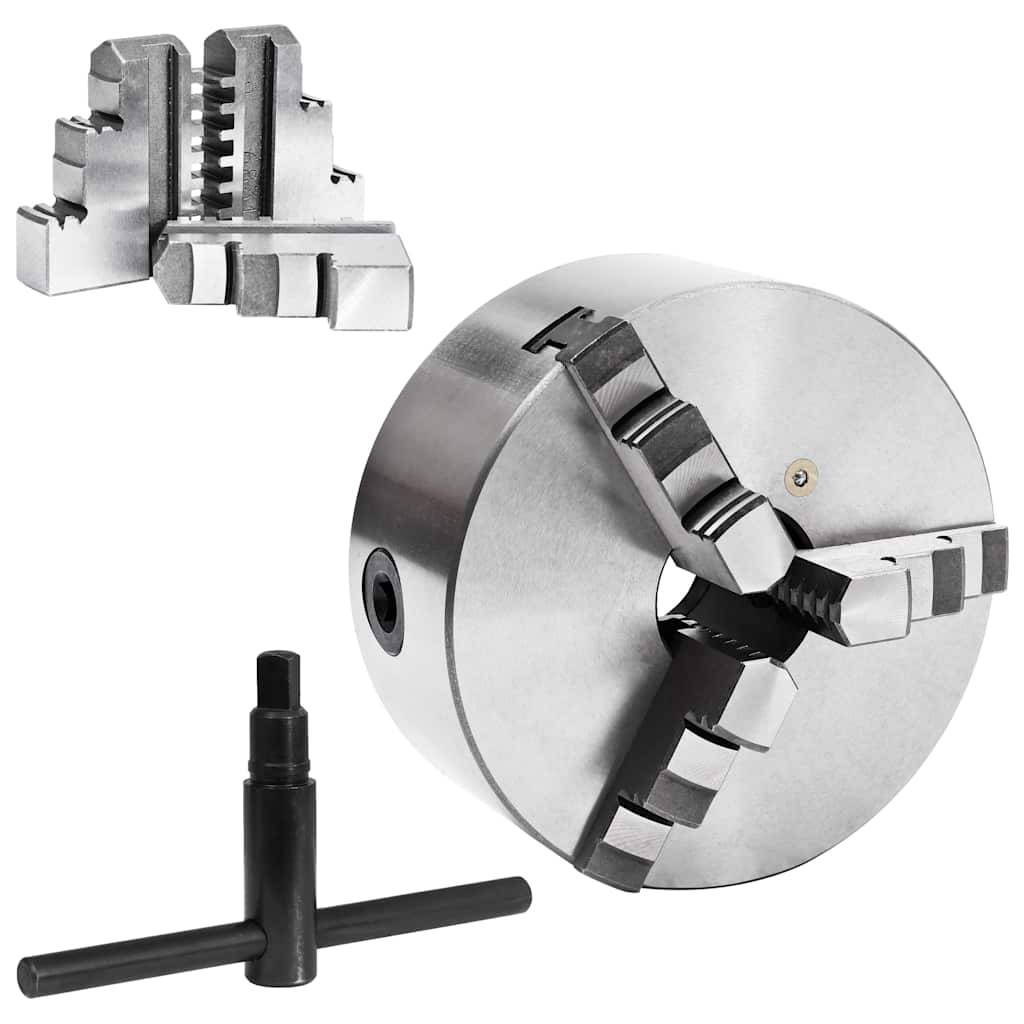

| 160 mm | 3 jaw | 160 mm | 3 | 45 mm | 125 mm | 3 - 55 mm | 65 mm | 2500 R/min | 8.2 kg |

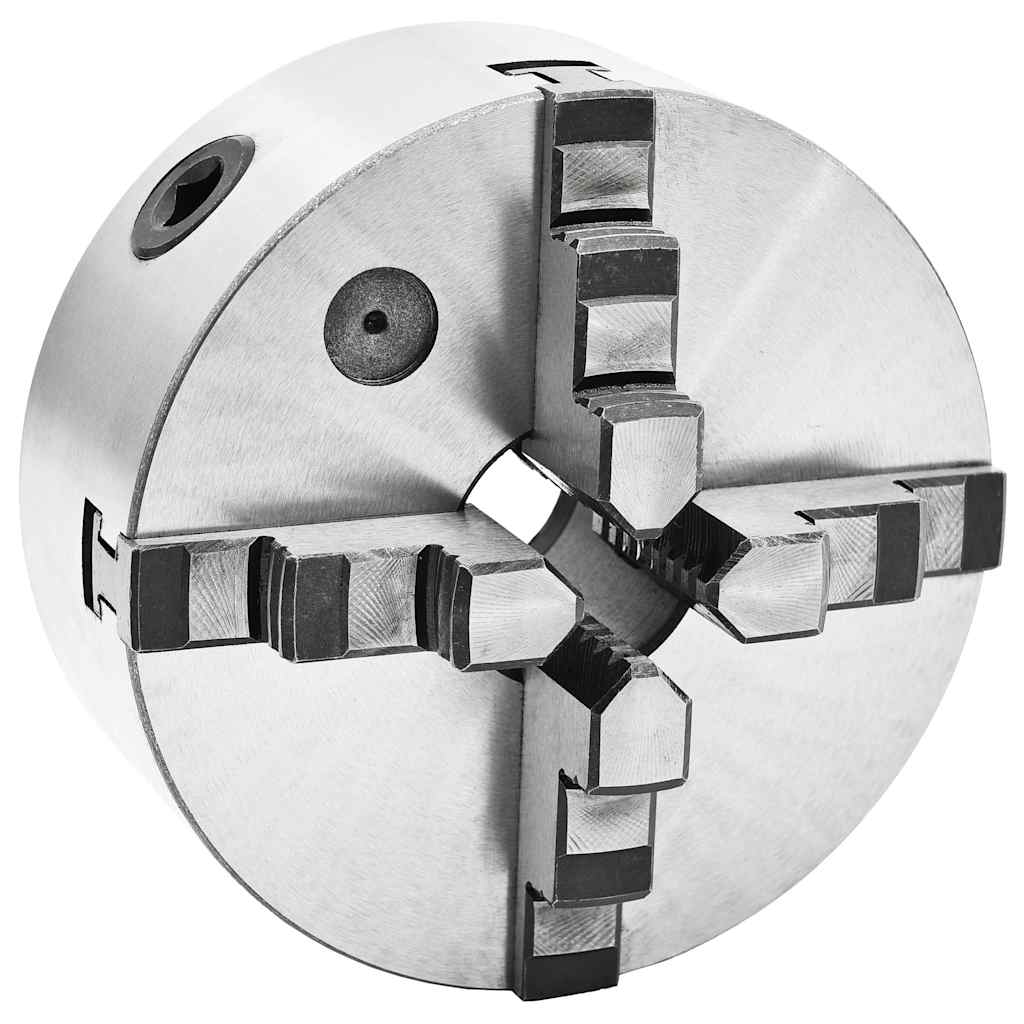

| 160 mm | 4 jaw | 160 mm | 4 | 45 mm | 130 mm | 3 - 55 mm | 65 mm | 2500 R/min | 8.5 kg |

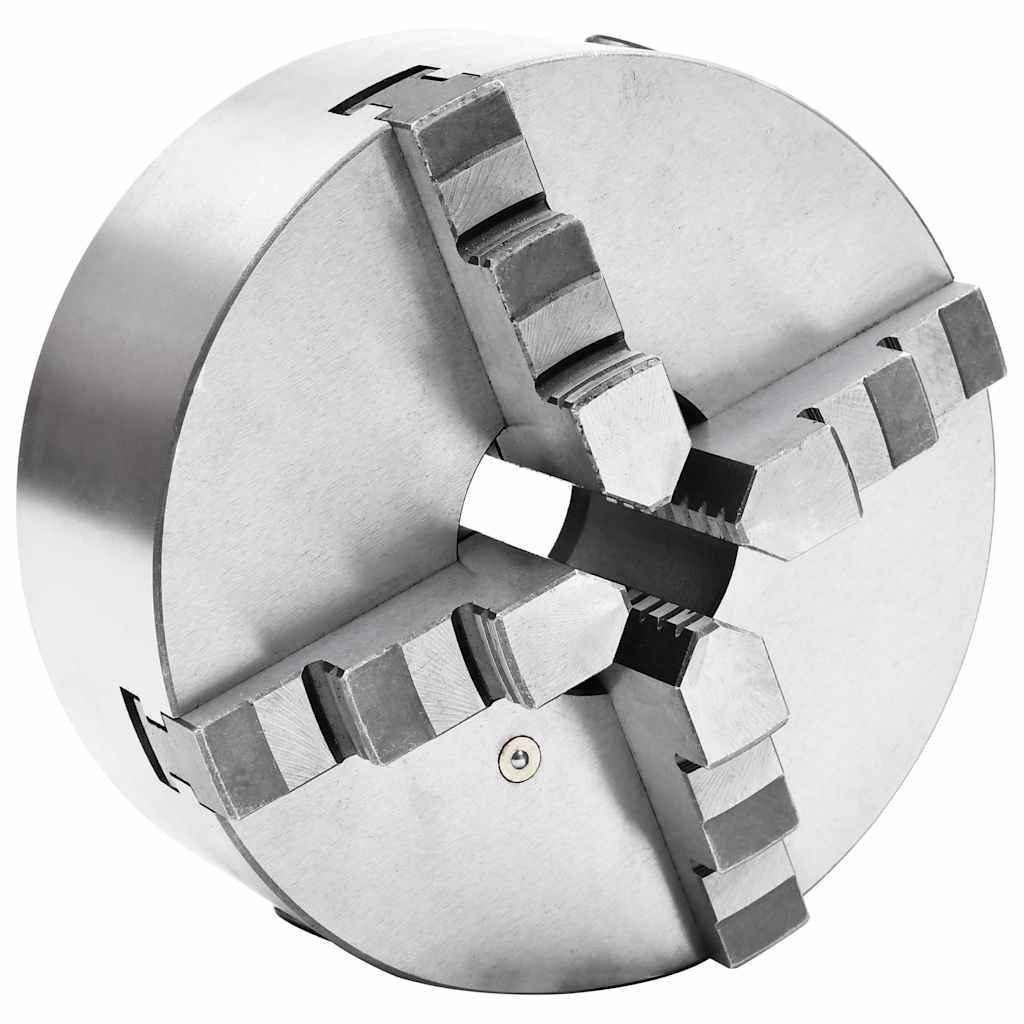

| 200 mm | 4 jaw | 200 mm | 4 | 65 mm | 165 mm | 4 - 85 mm | 75 mm | 2000 R/min | 15.5 kg |
